Melanopy¶

A melanopic (circadian) axis for scientific colormaps.

Colormaps are usually judged on two axes — perceptual uniformity and colour-vision-deficiency (CVD) safety. Melanopy adds a third: how much short-wavelength, melanopic (melatonin-suppressing) light a map emits. Unlike the other two it is a design dimension you choose by context, not a pass/fail gate — a sleep lab wants the protective end of the axis, a daytime alerting display the other.

The package measures the axis (a rater that scores any colormap, display white = 1.0), generates a one-parameter family that walks it while holding uniformity and CVD-safety fixed, and ships CVD-safe named colormaps.

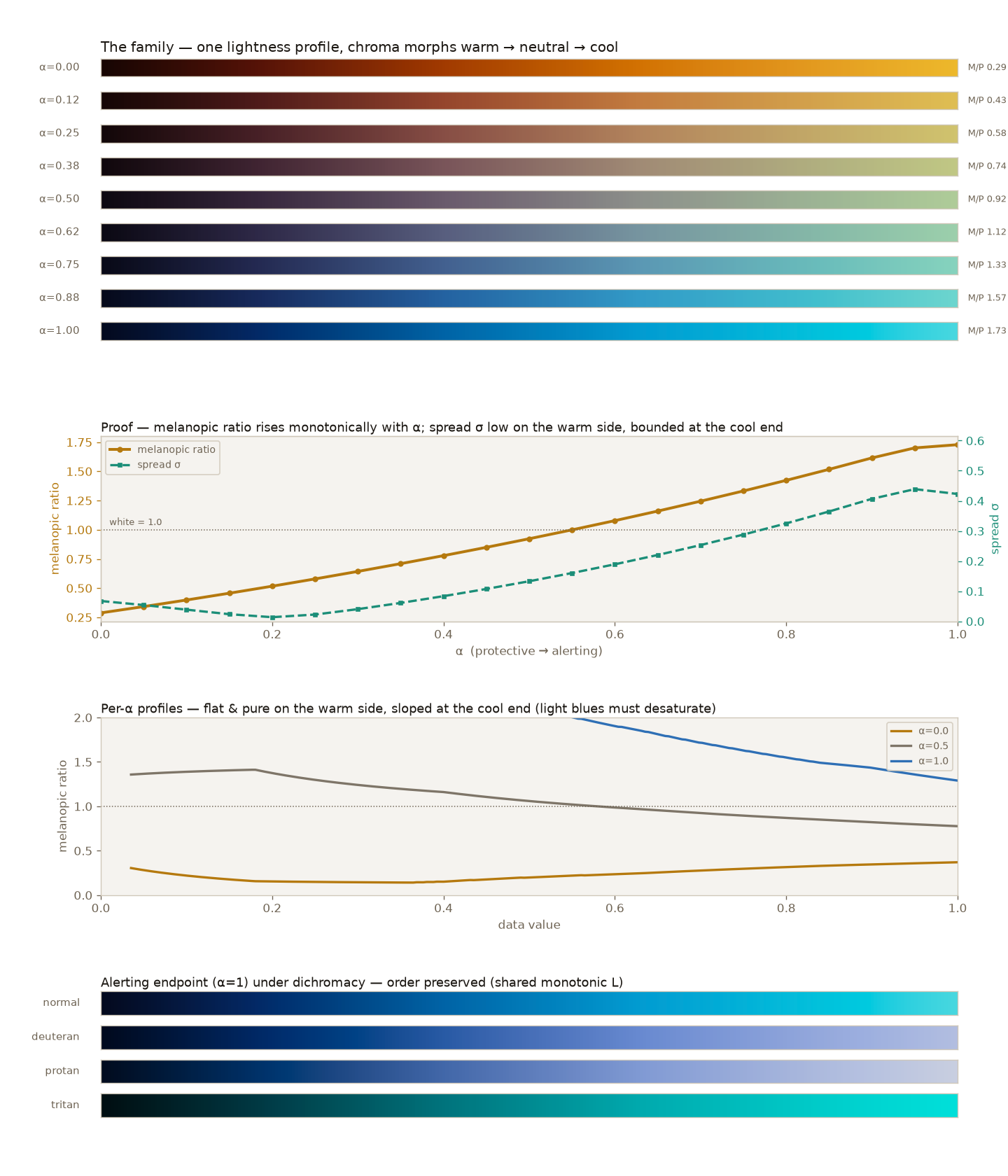

The Circadia family: one dial from protective (warm) to alerting (cool), lightness held uniform

Scope — a colour property, not a dose

Melanopy rates a colour's chromaticity, not light dose. Real circadian load also depends on brightness, screen fill, viewing distance, and ambient light; if you need to stay alert the dominant lever is room lighting. The concept, validation, and limitations are covered in full in the manuscript — these docs stay focused on the API.

Install¶

pip install melanopy      # or:  uv add melanopy

Quickstart¶

import matplotlib.pyplot as plt
import numpy as np

import melanopy as mp

# Score any colormap on the melanopic axis (display white = 1.0)
c = plt.get_cmap("viridis")(np.linspace(0, 1, 256))[:, :3]
print(mp.rate_colormap(c))
# {'melanopic_ratio': 0.834, 'mp_spread': 0.556, 'range': (0.395, 3.069)}

# Use the named endpoints (registered with matplotlib) on any 2-D field Z
mp.register()
Z = np.add.outer(np.linspace(0, 1, 200), np.linspace(0, 1, 200))
plt.imshow(Z, cmap="sodium")     # protective: warm, low-melanopic
plt.imshow(Z, cmap="xenon")      # alerting:   cool, high-melanopic
plt.imshow(Z, cmap="equilux")    # circadian-neutral (M/P ≈ 1)

# Dial the whole axis: alpha 0 (protective) .. 1 (alerting)
cmap = mp.circadia(0.3, as_cmap=True)

melanopic_ratio < 1 → protective (warm); > 1 → alerting (cool/blue).

The two metrics¶

rate_colormap returns two distinct numbers:

metric	what it tells you
M/P mean (`melanopic_ratio`)	where a map sits on the axis (display white = 1)
M/P spread (σ) (`mp_spread`)	how tightly it sits — a tight spread reads as a "pure" ramp

A map can be mildly protective on average yet smeared (viridis dumps blue at its dark end); the two numbers tell that apart.

Where next¶

API reference — the public functions and named colormaps, with examples.
Cookbook — short, copy-pasteable recipes with output.
